How to Run a Scan

In this simple tutorial example, we perform a basic scan on the samples directory distributed by default with Scancode.

Prerequisites

Refer Prerequisites to make sure the correct Python Interpreters and other prerequisites are satisfied.

Setting up a Virtual Environment

ScanCode Toolkit supports Python 3 in 3.2.x and later versions, so if you are using 3.2.x or later versions, you should create a virtual environment using the Virtualenv tool with a python 3.6 interpreter.

The following commands set up and activate the Virtual Environment venv-scancode-py3:

virtualenv -p /usr/bin/python3.6 venv-scancode-py3
source venv-scancode-py3/bin/activate

If you are using Scancode Toolkit 3.1.0 and earlier versions, they are not compatible with Python 3.x so you should create the virtual environment with a python 2.7 interpreter:

virtualenv -p /usr/bin/python2.7 venv-scancode-py2
source venv-scancode-py2/bin/activate

Setting up Scancode Toolkit

Get ScanCode Toolkit from pip:

pip install scancode-toolkit

Note

You can install a specific version of Scancode Toolkit like scancode-toolkit==3.1.1.

Looking into Files

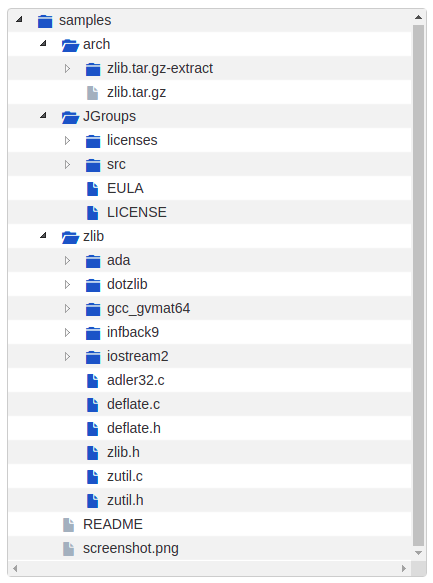

As mentioned previously, we are going to perform the scan on the samples directory distributed by default with Scancode Toolkit. Here’s the directory structure and respective files:

../../_images/files_sample.png

We notice here that the sample files contain a package zlib.tar.gz. So we have to extract the archive before running the scan, to also scan the files inside this package.

Performing Extraction

To extract the packages inside samples directory:

extractcode samples

This extracts the zlib.tar.gz package:

../../_images/extractcode.png

Note

--shallow option can be used to recursively extract packages.

Deciding Scan Options

These are some common scan options you should consider using before you start the actual scan, according to your requirements.

  1. The Basic Scan options, i.e. -c, -l, -p, -e, -u, and -i are to be decided, according to your requirements. If you do not need one specific type of information (say, licenses), consider removing it, because the more things you scan for, longer it will take for the scan to complete.

Note

You have to select these options explicitly, as they are not default anymore from versions 3.x, unlike earlier versions having -clp as default.

  1. --license-score INTEGER is to be set if license matching accuracy is desired (Default is 0, and increasing this means a more accurate match). Also, using --license-text includes the matched text to the result.

  2. -n INTEGER option can be used to speed up the scan using multiple parallel processes.

  3. --timeout FLOAT option can be used to skip a file taking a lot of time to scan.

  4. --ignore <pattern> can be used to skip certain group of files.

  5. <OUTPUT FORMAT OPTION(s)> is also a very important decision when you want to use the output for specific tasks/have requirements. Here we are using json as ScanCode Workbench imports json files only.

For the complete list of options, refer All Available Options.

Running The Scan

Now, run the scan with the options decided:

scancode -clpeui -n 2 --ignore "*.java" --json-pp sample.json samples

A Progress report is shown:

Setup plugins...
Collect file inventory...
Scan files for: info, licenses, copyrights, packages, emails, urls with 2 process(es)...
[####################] 29
Scanning done.
Summary:        info, licenses, copyrights, packages, emails, urls with 2 process(es)
Errors count:   0
Scan Speed:     1.09 files/sec. 40.67 KB/sec.
Initial counts: 49 resource(s): 36 file(s) and 13 directorie(s)
Final counts:   42 resource(s): 29 file(s) and 13 directorie(s) for 1.06 MB
Timings:
  scan_start: 2019-09-24T203514.573671
  scan_end:   2019-09-24T203545.649805
  setup_scan:licenses: 4.30s
  setup: 4.30s
  scan: 26.62s
  total: 31.14s
Removing temporary files...done.
